Description

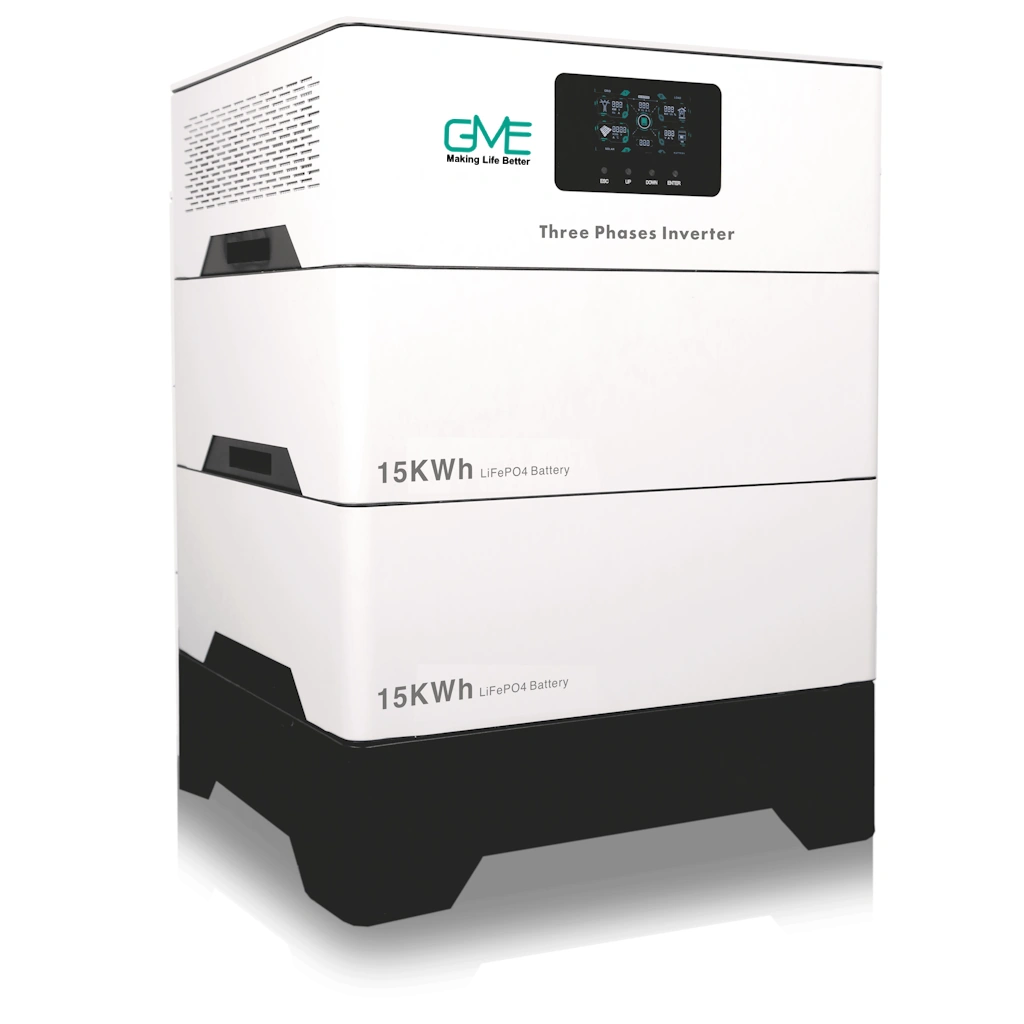

YQD-5126003-LFOESS 001 Solar Energy Storage System is an innovative solution designed for optimal energy storage and management. This advanced system integrates state-of-the-art lithium battery technology, ensuring exceptional efficiency and reliability. Perfect for both residential and commercial use, it promotes sustainable energy practices while reducing reliance on conventional power sources. With its sleek design and intuitive interface, the YQD-5126003-LFOESS 001 is tailored to meet the demands of modern energy needs.
- Battery Performance
- 30KWh lithium battery (LiFePO₄), supporting 100% deep discharge, with over 6,000 cycle life and a warranty exceeding 10 years.
- Flexible Application
- Modular design allows flexible expansion from 15–60KWh, adapting to various scenarios.
- Safety & Reliability
- Uses Grade A lithium battery, equipped with a built-in fire extinguisher and intelligent BMS system.
- Convenience
- Supports Wi-Fi connection for real-time monitoring; easy installation (inverter module: 49KG, battery module: 102KG).
- Rated Voltage: 51.2V
- Rated Capacity: 30Ah×2
- Max Continuous Discharge Current: 300A
- Standard Charge/Discharge Current: 150A (Charge), 230A (Discharge)
- Communication Methods: RS485, CAN, RS232
- Input
- AC Voltage Range: 110–280VAC or 305–480VAC
- PV Voltage Range (DC): 300–850V DC, MPPT 400–650V DC
- Number of MPPT: 2 channels
- Output
- Rated Power: 12000W
- Output Voltage: 230VAC/400VAC
- Frequency: 50Hz/60Hz (auto-detection)
- Dimensions: 1407×402×850mm
- Weight: 288kg
- Installation Method: Wall-mounted/floor-standing
- Certifications: UN38.3, MSDS, IEC, CE, RoHS
- Operating Temperature: -10℃~45℃
- Altitude: ≤1000m (up to 4000m)
- Humidity: ≤90%
