3 Phase ALL-IN-ONE ESS – YQD-5129003-LFOESS

Description

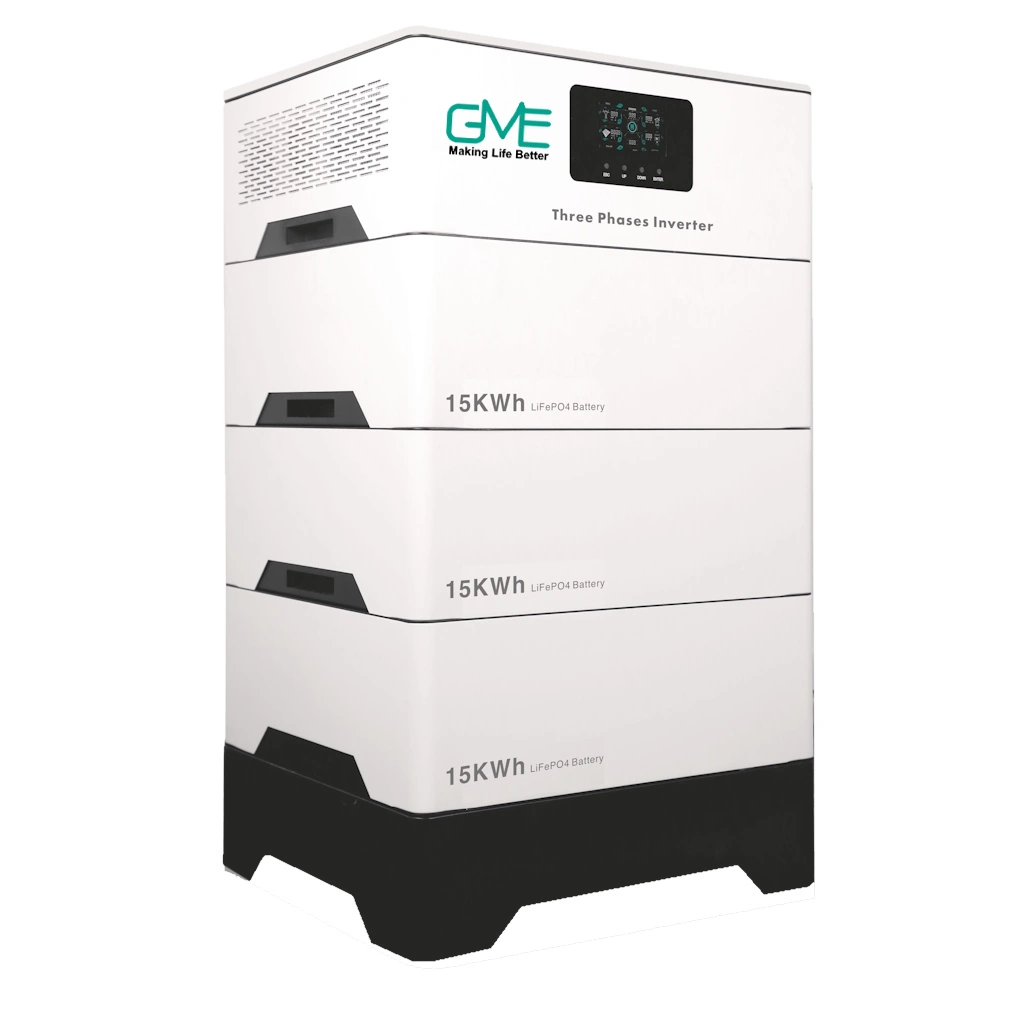

3 Phase All-In-One ESS – YQD-5129003-LFOESS

Energy Storage System combines advanced technology with convenience for seamless energy management. Engineered for exceptional performance, this system is ideal for both commercial and industrial use, ensuring stability, reliability, and eco-friendliness. With its innovative design, the YQD-5129003-LFOESS provides a complete energy storage solution, easily meeting modern sustainability needs.

Core Features

• Larger Battery Capacity: Modular 15KWh design, supports 100% deep discharge, 15–60KWh flexible expansion.
• Flexible Application: 15KWh modular structure adapts to various needs.
• Safe & Reliable: Uses LiFePO₄ Grade A battery cells, over 6,000 cycle life.
• Simple Installation: 49KG hybrid inverter module, 102KG battery module.
• Transparency: Wi-Fi connection for real-time monitoring.
• Active Safety: Equipped with smart BMS system and installed fire extinguishers.

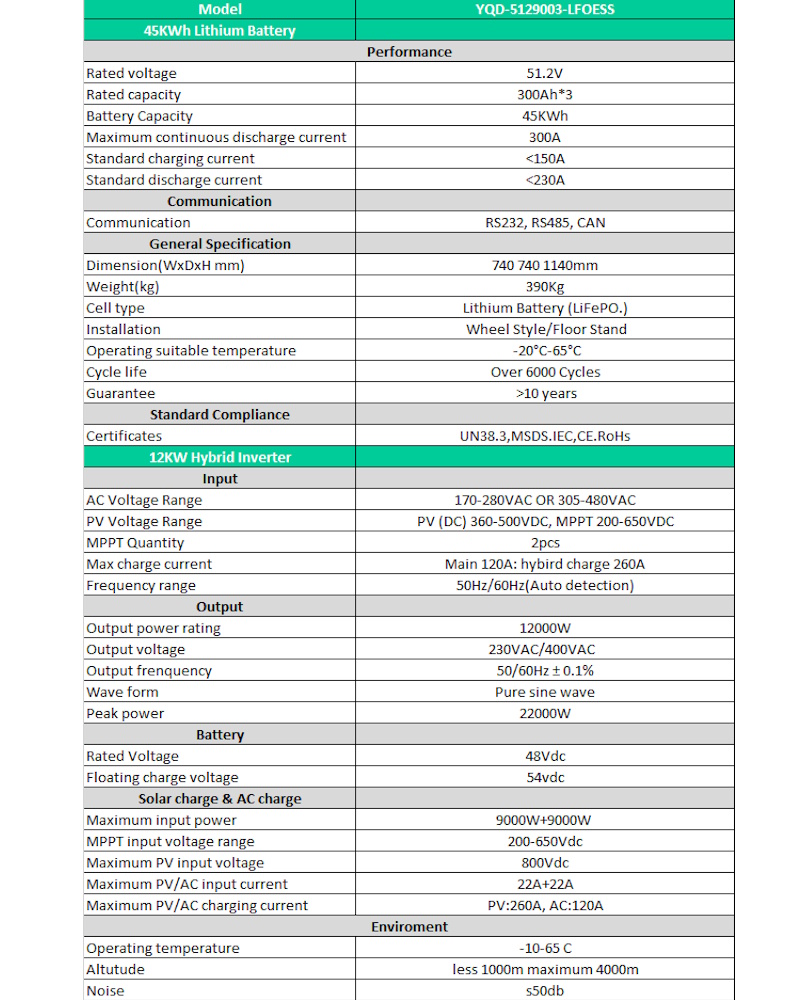

Technical Specifications

45KWh Lithium Battery – Performance

• Rated Voltage: 51.2V
• Rated Capacity: 30Ah×3
• Battery Capacity: 45KWh
• Max Continuous Charge/Discharge Current: 300A
• Standard Charge Current: 150A
• Standard Discharge Current: 230A

Communication

• Methods: RS232, RS485, CAN

General Specifications

• Dimensions (W×D×H/mm): 740×740×1840
• Weight: 390kg
• Cell Type: Lithium Battery (LiFePO₄)
• Installation: Wheel Style/Floor Stand
• Operating Temperature: -10℃~45℃
• Cycle Life: Over 6,000 cycles
• Guarantee: >10 years
• Certifications: UN38.3, MSDS, CE, RoHS

12KW Hybrid Inverter

• Input
  • AC Voltage Range: 110–280VAC OR 305–480VAC
  • PV Voltage Range (DC): 300–800V DC (MPPT 400–650V DC)
  • MPPT Quantity: 2
  • Max Charge Current: Main 120A, hybrid charge 200A
  • Frequency Range: 50/60Hz (auto-detection)
• Output
  • Power Rating: 12,000W
  • Voltage: 230VAC/400VAC
  • Frequency: 50Hz/60Hz±0.1Hz
  • Wave Form: Pure sine wave
  • Peak Power: 22,000W
• Battery
  • Rated Voltage: 48Vdc
  • Floating Charge Voltage: 54.2V
• Solar & AC Charge
  • Maximum Input Power: 9,000W~9,600W
  • MPPT Input Voltage Range: 200–650Vdc
  • Maximum PV Input Voltage: 800Vdc
  • Maximum PV/AC Charge Current: PV 20A+120A
• Environment
  • Operating Temperature: -10℃~45℃
  • Altitude: ≤1,000m (max 4,000m)
  • Noise: ≤60dB
