Description

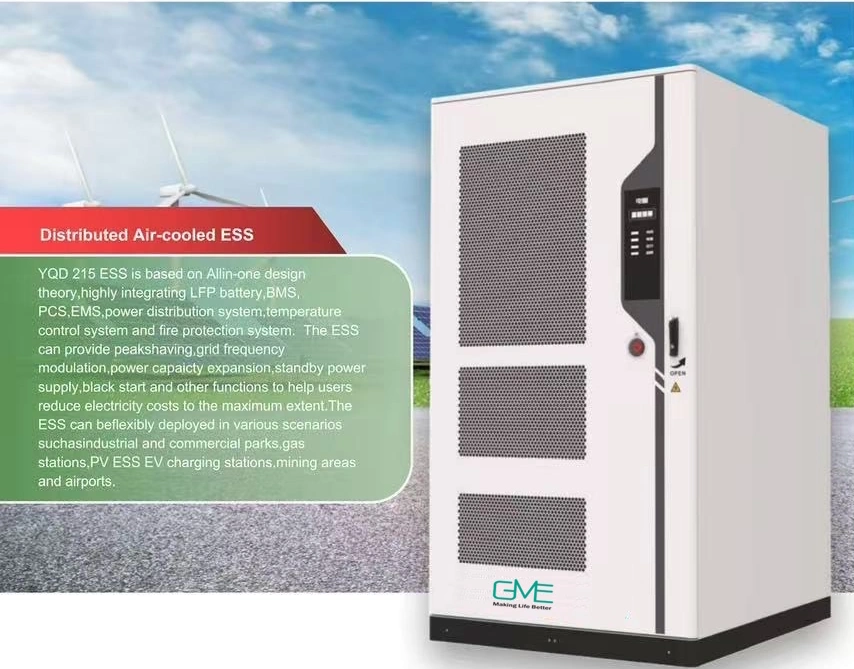

GME 215 ESS: All-in-One Energy Storage Solution
The GME 215 ESS is built on an all-in-one design theory, integrating an LFP battery, Battery Management System (BMS), Power Conversion System (PCS), Energy Management System (EMS), power distribution system, temperature control system, and fire protection system into a highly efficient solution.
Engineered for peak shaving, grid frequency modulation, power capacity expansion, standby power supply, and black start functionality, the 215 ESS helps users maximize cost savings while ensuring stable energy storage.
Flexible Deployment for Malaysian Industries
The 215 ESS is designed to be adaptable across multiple sectors, including industrial and commercial parks, gas stations, PV ESS EV charging stations, mining areas, and airports. It will provide businesses in Malaysia with a reliable and scalable energy storage solution.
Advanced Safety & Protection
Equipped with early thermal runaway prewarning and PACK-level combustible gas detection, it ensures targeted fire extinguishing by seamlessly coordinating with the BMS and EMS. This proactive approach to energy safety makes it a trusted solution for businesses seeking operational security and efficiency.

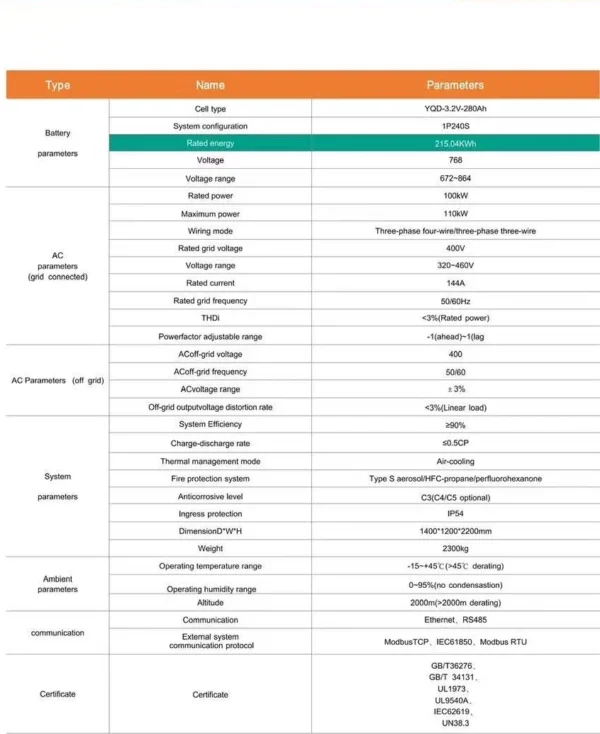

Technical Specifications
Battery Parameters
- Cell Type: YQD-3.2V-280Ah
- System Configuration: 1P240S
- Voltage: 768
- Voltage Range: 672-864
AC Parameters (grid connected)
- Related Power: 100kW
- Max Power: 110kW
- Wiring Mode: 3-phase four wires/3-phase three wires
- Rated Grid Voltage: 400v
- Voltage Range: 320-460V
- Rated Current: 144A
AC Parameters (Off Grid)
- AC off-grid Voltage: 400
- AC off-grid frequency: 50/60
- AC Voltage Range: ±3%
- Rated Grid Voltage: 400v
- Rated Current: 144A
Communication
- Type: Ethernet, RS485
- External System Communication Protocol: Modbus TCP, IEC6 1850, Modbus RTU
Certification
- Certificate: GB/T36276, GB/T34131, UL1973, UL9540A, IEC62619, UN38.3
