Description

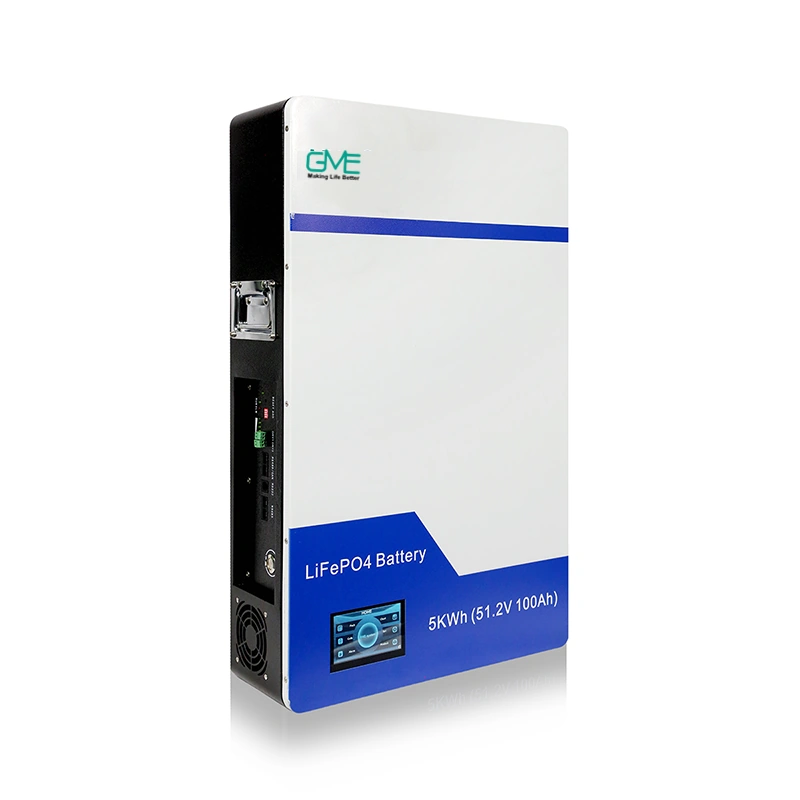

The GME YQD-512100-LFO is a cutting-edge lithium iron phosphate (LiFePO4) battery designed for solar energy systems, backup power, and industrial applications in Malaysia. Engineered for long-lasting durability, enhanced safety, and maximum efficiency, this energy storage solution provides stable power whenever needed.
Optimized Energy Control for Cost Savings
Equipped with peak shaving, grid frequency regulation, power capacity expansion, standby power supply, and black start functionality, the GME YQD-512100-LFO helps businesses reduce electricity expenses while maintaining a stable and adaptable energy supply.
Key Features & Benefits
✔️ High-Capacity & Flexible Power – Ideal for residential, commercial, and industrial energy storage needs.
✔️ Dependable & Long-Lasting Performance – Built for extended life cycles, minimizing maintenance while optimizing energy efficiency.
✔️ Smart Battery Management – Includes an advanced Battery Management System (BMS) that prevents overcharging, over-discharging, and temperature fluctuations, ensuring reliable operation.
✔️ Eco-Friendly & Sustainable Solution – Designed to reduce environmental impact while supporting Malaysia’s transition toward clean energy.

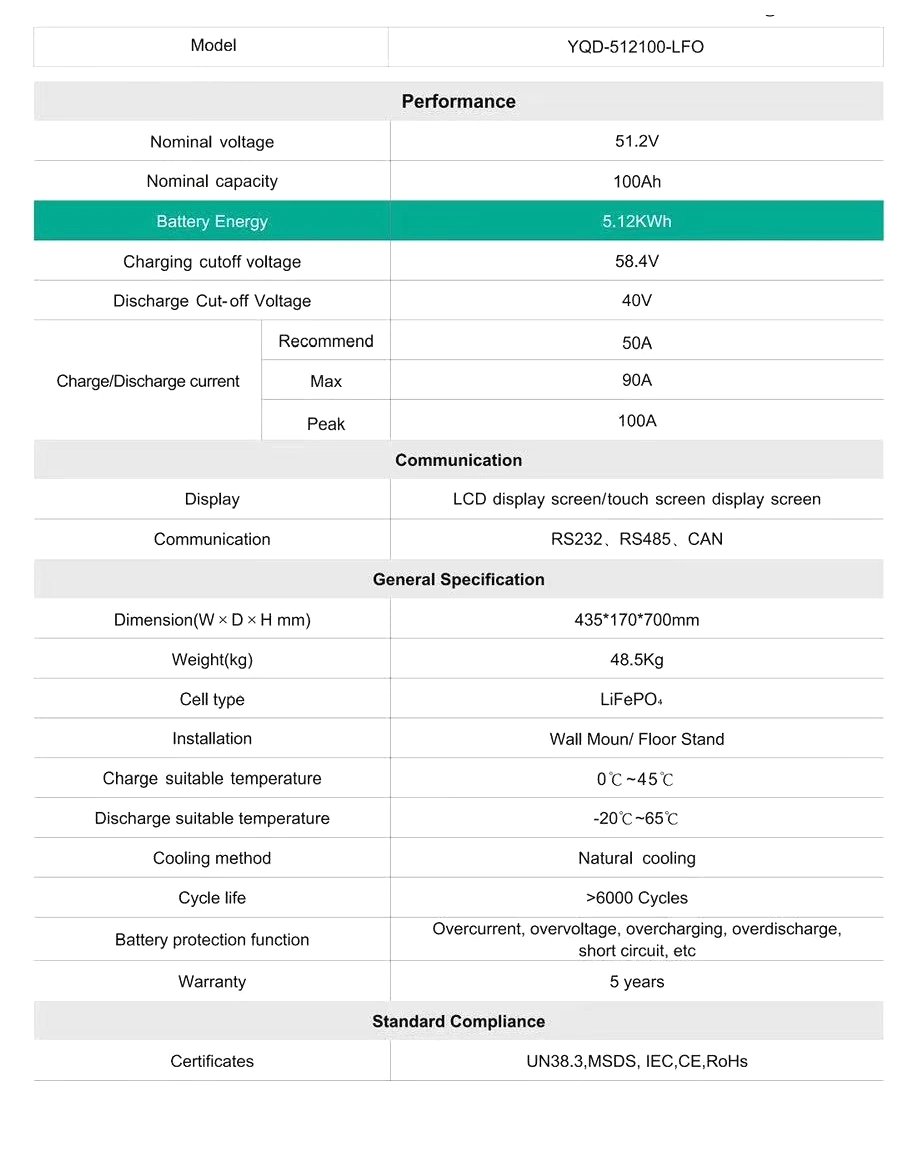

Performance
- Nominal voltage: 51.2V
- Nominal capacity: 100Ah
- Battery Energy: 5.12KWh
- Charging cutoff voltage: 58.4V
- Discharge Cut-off Voltage: 40V
- Maximum continuous discharge current: 100A
- Instantaneous discharge current: 200A
- Standard charging current: <50A
- Standard discharge current: 100A
Communication
- Display: LCD display screen/touch screen display screen
- Communication: RS232, RS485, CAN
General Specification
- Dimension (W×D×H mm): 700*435*170mm
- Weight (kg): 48.5Kg
- Cell type: LiFePO₄
- Installation: Wall Mount/Floor Stand
- Charge suitable temperature: 0℃ ~ 45℃
- Discharge suitable temperature: -20℃ ~ 65℃
- Cooling method: Natural cooling
- Cycle life: 6000 Cycles
- Battery protection function: Overcurrent, overvoltage, overcharging, overdischarge, short circuit, etc.
- Warranty: 5 years
Standard Compliance
- Certificates: UN38.3, MSDS, IEC
Features
- Built-in LiFePO₄ Battery cells. Large capacity, long cycle life, high safety, environmental protection.
- Intelligent communication.
- Built-in BMS control board
Application
- Construction housing
- Communication base station
- Ships and Islands
- Animal husbandry
- Electricity free areas
- Field equipment
