Description

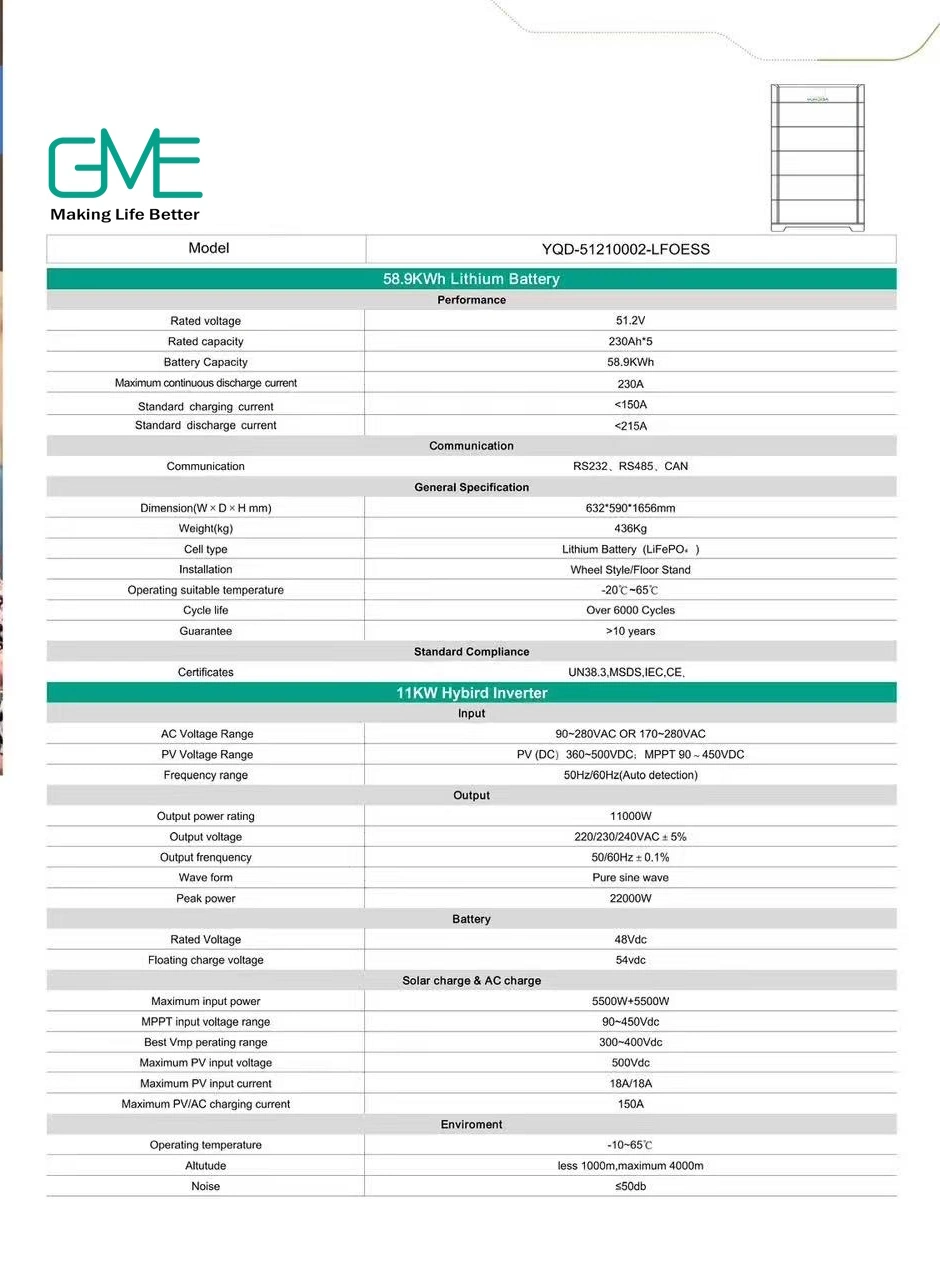

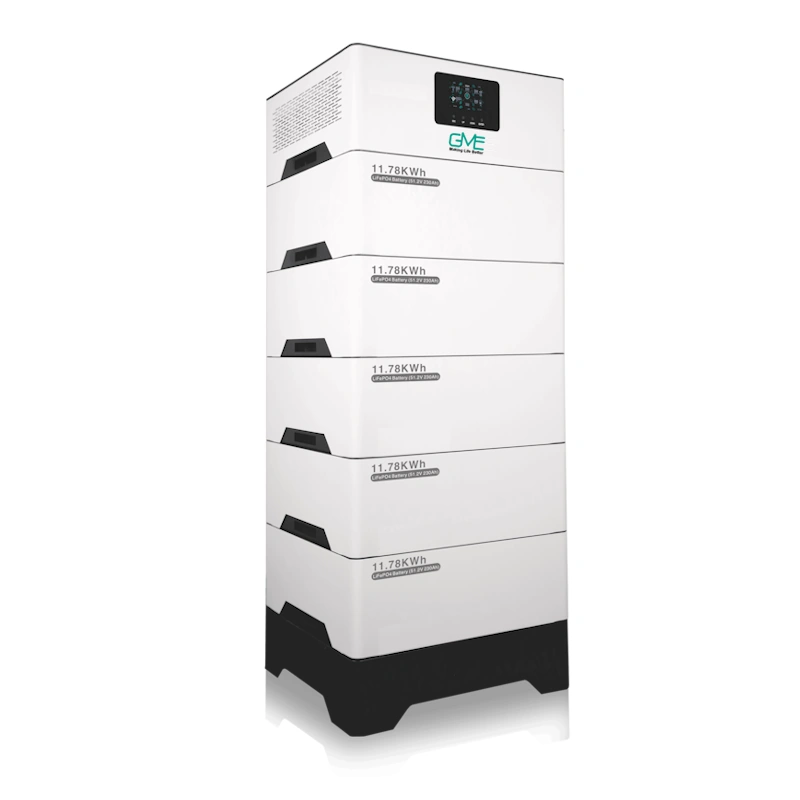

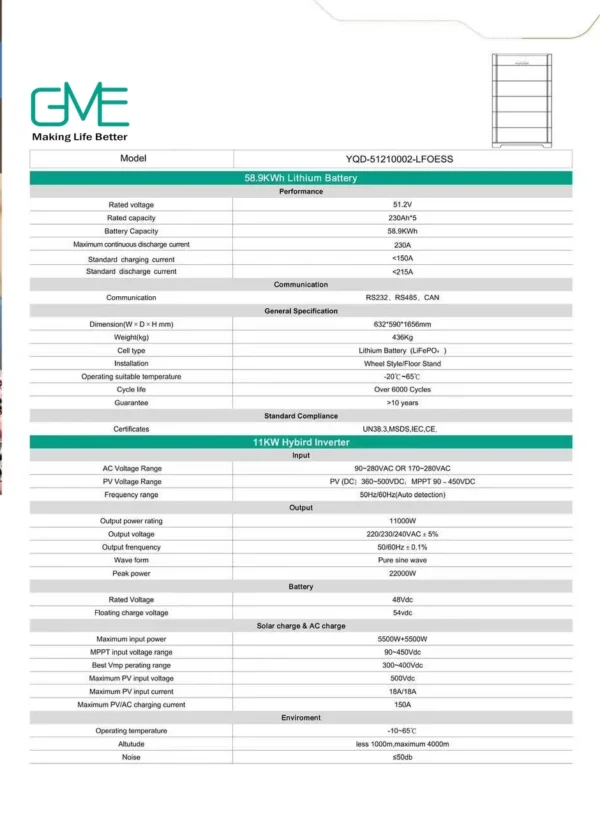

The GME YQD-51210002-LFOESS is an innovative solar energy storage system, engineered for seamless energy management, scalable power solutions, and long-term reliability. Powered by advanced LFP battery technology, it delivers optimized energy output, improved sustainability, and high-performance integration for industrial and commercial applications.
11KW Hybrid Inverter
Input:
- AC Voltage Range: 90-280V AC or 170-280V AC
- PV Voltage Range (PV DC): 360-500V DC; MPPT: 90-450V DC
- Frequency Range: 50Hz/60Hz (Auto Detection)
Output:
- Output Power Rating: 11000W
- Output Voltage: 220/230/240V AC ±5%
- Output Frequency: 50/60Hz ±0.1%
- Waveform: Pure sine wave
- Peak Power: 20400VA
Battery:
- Rated Voltage: 48V DC
- Floating Charge Voltage: 54V DC
Solar Charge BAC Charge:
- Maximum Input Power: 5000W + 5000W
- MPPT Voltage Range: 90-450V DC
- Best VMP Operating Range: 300-400V DC
- Maximum PV Input Voltage: 500V DC
- Maximum PV Charging Current: 150A
- Maximum AC Charge Current: 150A
Environment:
- Operating Temperature Range: -10℃ ~ 65℃
- Altitude: Less than 1000m, maximum 4000m
- Noise: <50dB
Lithium Battery
Performance:
- Nominal Voltage: 51.2V
- Nominal Capacity: 230Ah*5
- Battery Energy: 58.9KWh
- Maximum Continuous Discharge Current: 230A
- Standard Charging Current: <150A
- Standard Discharge Current: <215A
Communication:
- Communication Interface: RS232, RS485, CAN
General Specification:
- Cell Type: LiFePO4
- Installation: Floor Stand
- Operating Suitable Temperature: -20℃ ~ 65℃
- Cycle Life: >6000 Cycles
Standard Compliance:
- Certificates: UN38.3, MSDS, IEC
