Description

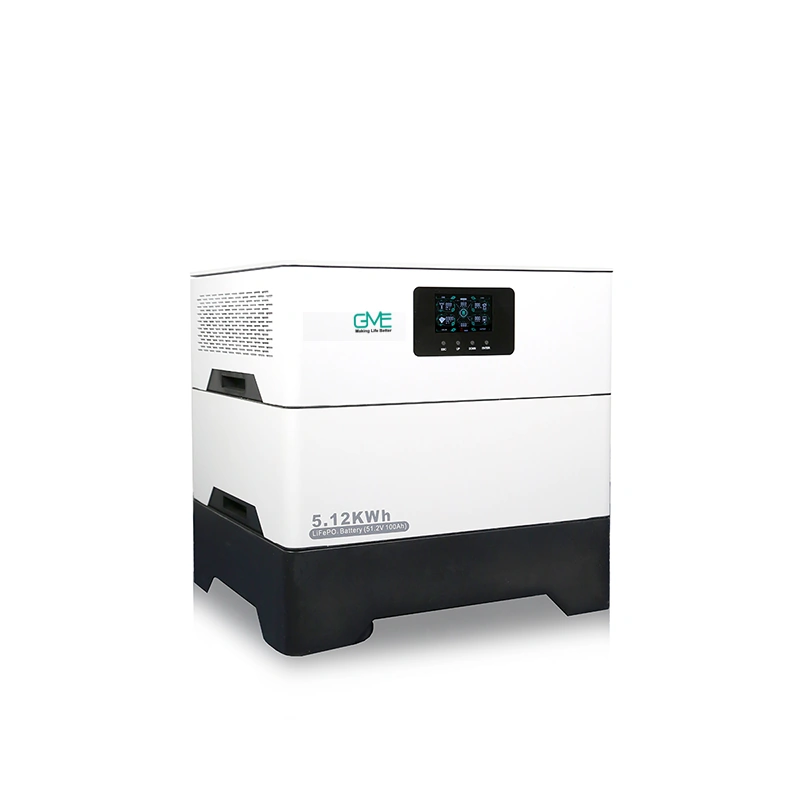

The GME YQD-5121001-LFOESS is an all-in-one energy storage system designed for solar power applications, backup energy, and industrial use in Malaysia. Featuring advanced lithium iron phosphate (LiFePO4) technology, this system offers long-lasting durability, superior safety, and optimized efficiency for stable power whenever needed.
Input
- Rated Voltage: 220/230/240V AC
- Frequency range: 50Hz/60Hz (adaptive)
Output
- Output Power Rating: 5500W
- Output Voltage: 220/230/240V AC ±5%
- Output Frequency: 50Hz/60Hz ±0.1%
- Waveform: Pure sine wave
- Switching Time (msec): Computer/0ms, Household appliances 20ms
- Peak Power: 11000VA
- Overload Capacity: 21s @ 110%-150% load, 11s @ 150%-200% load, 400ms @ >200% load
Battery
- Rated Voltage: 48Vdc
- Floating Charge Voltage: 54Vdc
- Overcharge Protection: 63Vdc
Solar Charge BAC Charge
- PV Charge Mode: MPPT
- Maximum Input Power: 5500W
- MPPT Voltage Range: 120-500Vdc
- Best VMP Operating Range: 300-400Vdc
- Maximum PV Input Voltage: 500Vdc
- Maximum PV Input Current: 16A
- Maximum PV Charging Current: 100A
- Maximum AC Charge Current: 100A
- Maximum Charge Current: 100A
Display
- LCD Interface: LCD Display
Interfaces
- RS232/RS485/CAN
- Baud Rate: 2400
- Expansion IO Communication: Battery/BMS/WiFi/Dry Contact, etc.
Environment
- Operating Temperature Range: -10℃ ~ 50℃
- Operating Humidity: 20% ~ 90%
- Storage Temperature: -15℃ ~ 60℃
- Altitude: Less 1000m, maximum 4000m
- Noise: <55db
Lithium Battery Performance
Performance
- Rate Voltage: 51.2V
- Rated Capacity: 100Ah
- Battery Energy: 5.12KWh
- Maximum Continuous Discharge Current: 100A
- Instantaneous Discharge Current: 200A
- Standard Charging Current: <100A
- Standard Discharge Current: 100A
Communication
- Communication: RS232, RS485, CAN
General Specification
- Cell Type: LiFePO4
- Installation: Floor Stand
- Discharge Suitable Temperature: -20℃ ~ 65℃
- Cooling Method: Natural cooling
- Cycle Life: >6000 Cycles
- Warranty: 5 years
Standard Compliance
- Certificates: UN38.3, MSDS, IEC, CE, RoHs
