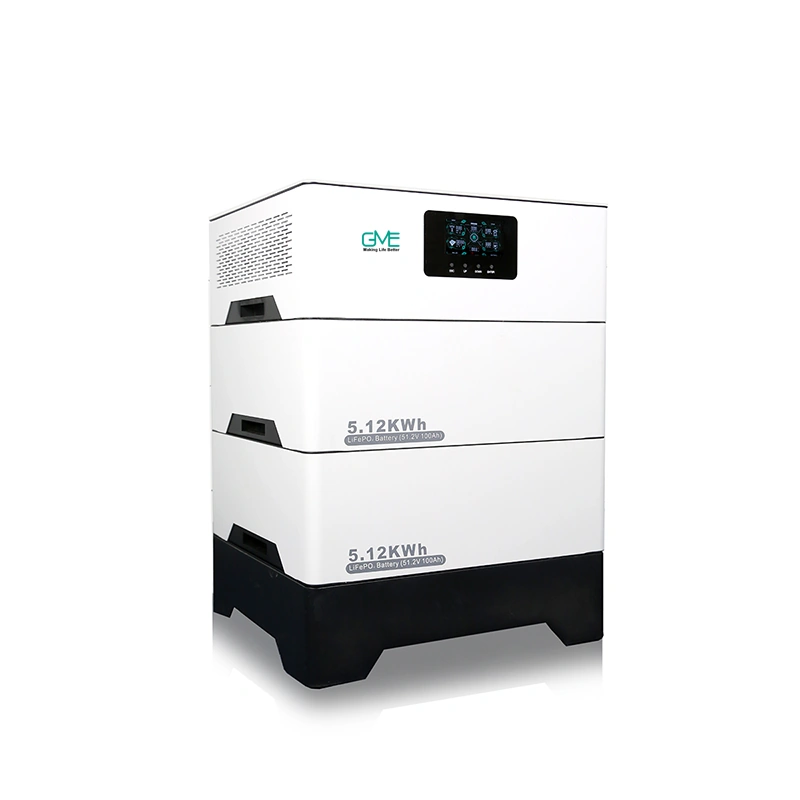

GME YQD-5122001-LFOESS -Solar Energy Storage System

Description

The GME YQD-5122001-LFOESS is an all-in-one solar energy storage system, combining advanced LFP battery technology, energy management systems (EMS), power conversion systems (PCS), and intelligent distribution controls into a seamless, highly efficient solution.

Key Features & Benefits of GME YQD-5122001-LFOESS

✔️ Integrated All-in-One Design – Combines battery, inverter, and energy management system for a seamless power solution.
✔️ High-Capacity & Versatile – Supports residential, commercial, and industrial energy storage needs.
✔️ Dependable & Long-Lasting Performance – Built for extended life cycles, reducing maintenance and maximizing efficiency.
✔️ Smart Battery Management – Features an advanced Battery Management System (BMS) that protects against overcharging, over-discharging, and overheating.
✔️ Eco-Friendly & Sustainable – Minimizes environmental impact while supporting Malaysia’s push for clean energy solutions.

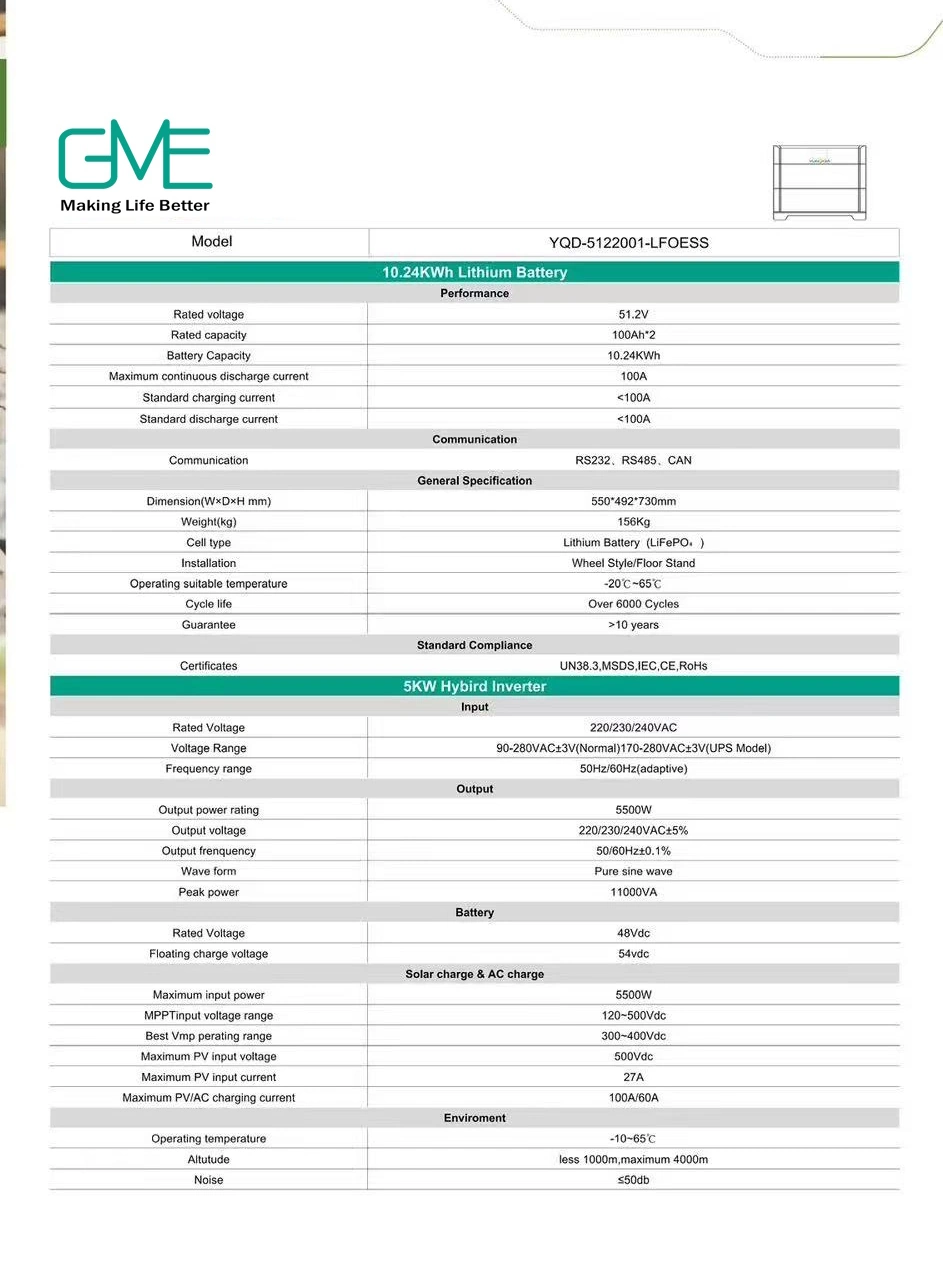

5KW Hybrid Inverter
Input

Rated Voltage: 220/230/240V AC
Voltage Range: 90-280V AC / 33V (Normal) / 170-280V AC / 33V (UPS Mode)
Frequency range: 50Hz/60Hz (adaptive)

Output

Output Power Rating: 5500W
Output Voltage: 220/230/240V AC ±5%
Output Frequency: 50Hz/60Hz ±0.1%
Waveform: Pure sine wave
Peak Power: 11000VA

Battery

Rated Voltage: 48Vdc
Floating Charge Voltage: 54Vdc

Solar Charge BAC Charge

Maximum Input Power: 5500W
MPPT Voltage Range: 120-500Vdc
Best VMP Operating Range: 300-400Vdc
Maximum PV Input Voltage: 500Vdc
Maximum PV Charging Current: 100A
Maximum AC Charge Current: 60A

Interfaces

RS232/RS485/CAN
Baud Rate: 2400
Expansion IO Communication: Battery/BMS/WiFi/Dry Contact, etc.

Environment

Operating Temperature Range: -10℃ ~ 50℃
Operating Humidity: 20% ~ 90%
Storage Temperature: -15℃ ~ 60℃

Lithium Battery Performance

Performance

Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Battery Energy: 10.24KWh
Charging Cutoff Voltage: 58.4V
Discharge Cut-off Voltage: 40V
Maximum Continuous Discharge Current: 100A
Instantaneous Discharge Current: 200A
Standard Charging Current: <100A
Standard Discharge Current: 100A

Communication

Display: LCD display screen/touch screen display screen
Communication: RS232, RS485, CAN

General Specification

Cell Type: LiFePO4
Installation: Floor Stand/Wheel Style
Operating Suitable Temperature: -20℃ ~ 65℃
Cooling Method: Natural cooling
Cycle Life: >6000 Cycles
Battery Protection Function: Overcurrent, overvoltage, overcharging, overdischarge, short circuit, etc.
Warranty: 5 years

Standard Compliance
