Description

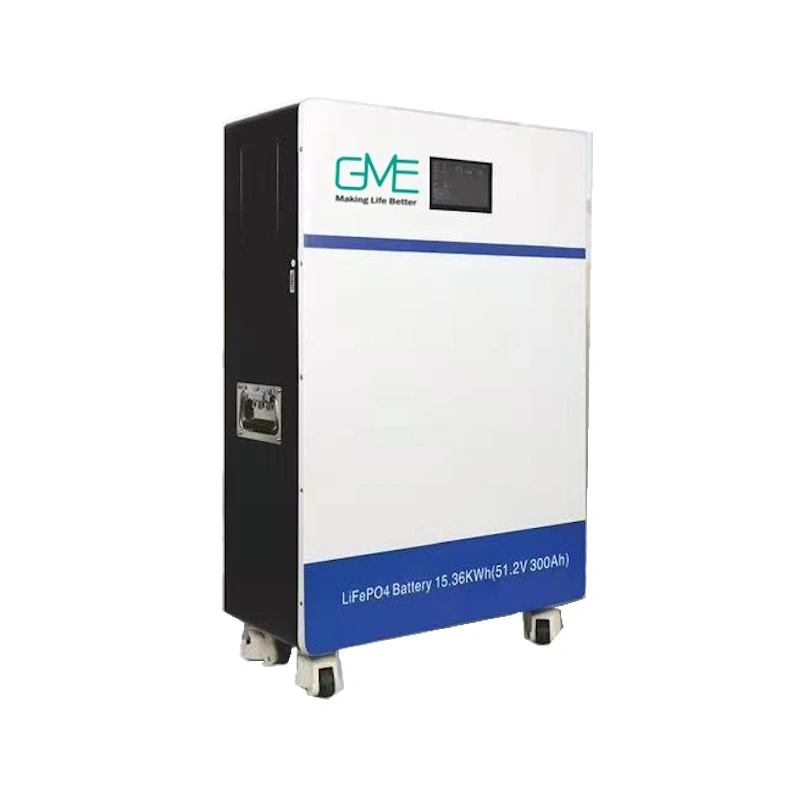

The GME YQD-512300-LFO is an advanced lithium energy storage system, engineered to deliver high-efficiency power management, robust energy security, and seamless system integration for demanding industrial and commercial applications. It features cutting-edge LFP battery technology and ensures long-lasting reliability and optimized energy performance.
Adaptive Energy Management for Cost Optimization
With peak shaving, grid frequency regulation, power capacity expansion, standby power supply, and black start functionality, the GME YQD-512300-LFO enhances energy efficiency. It reduces electricity expenses, making it a powerful solution for businesses seeking smart energy utilization.
Advanced Safety & Intelligent Risk Prevention
Equipped with early thermal runaway prewarning and PACK-level combustible gas detection, the GME YQD-512300-LFO proactively coordinates with BMS and EMS to enable targeted fire suppression, safeguarding assets with intelligent risk mitigation technology.

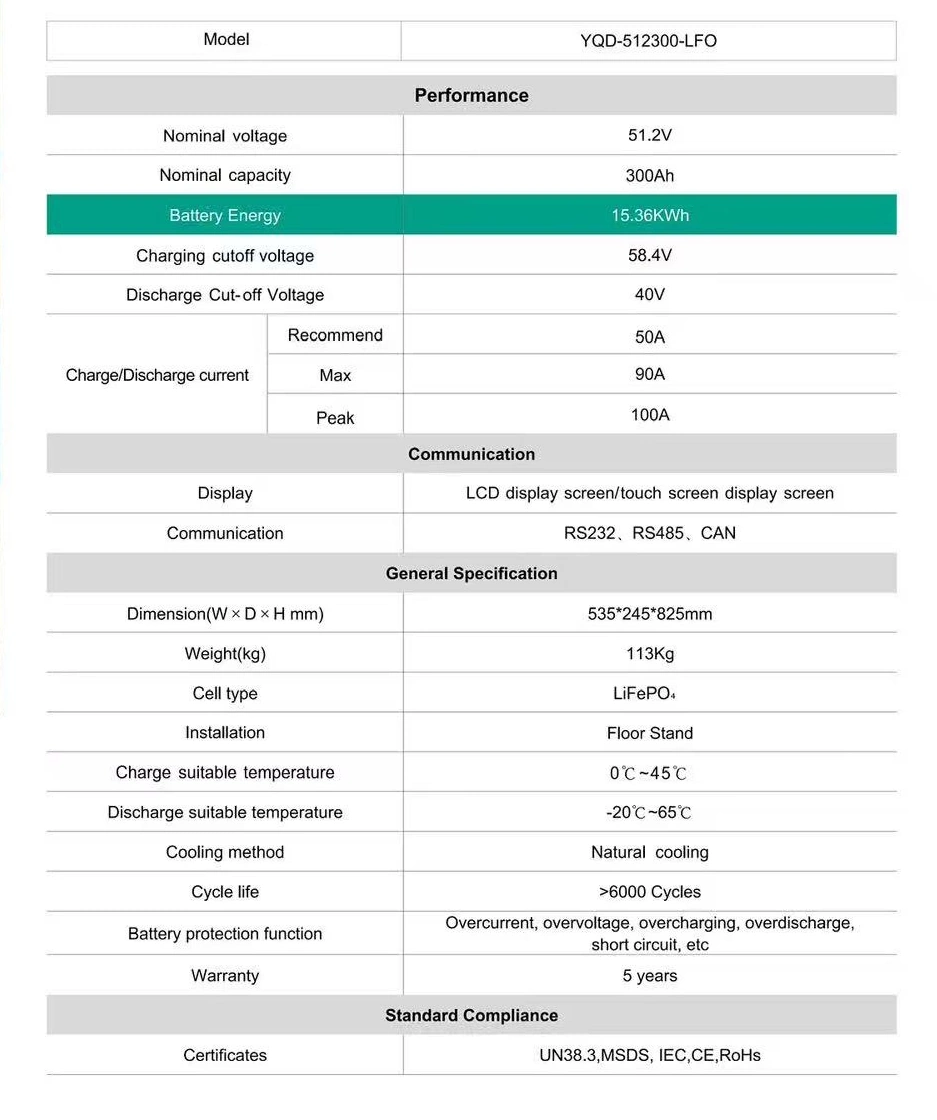

Performance
- Nominal voltage: 51.2V
- Nominal capacity: 300Ah
- Battery Energy: 15.36KWh
- Charging cutoff voltage: 58.4V
- Discharge Cut-off Voltage: 40V
- Maximum continuous discharge current: 200A
- Instantaneous discharge current: 400A
- Standard charging current: <100A
- Standard discharge current: 200A
Communication
- Display: LCD display screen/touch screen display screen
- Communication: RS232, RS485, CAN
General Specification
- Dimension (W×D×H mm): 825*535*245mm
- Weight (kg): 113Kg
- Cell type: LiFePO₄
- Installation: Wall Mount/Floor Stand
- Charge suitable temperature: 0℃ ~ 45℃
- Discharge suitable temperature: -20℃ ~ 65℃
- Cooling method: Natural cooling
- Cycle life: 6000 Cycles
- Battery protection function: Overcurrent, overvoltage, overcharging, overdischarge, short circuit, etc.
- Warranty: 5 years
Standard Compliance
- Certificates: UN38.3, MSDS, IEC
