Description

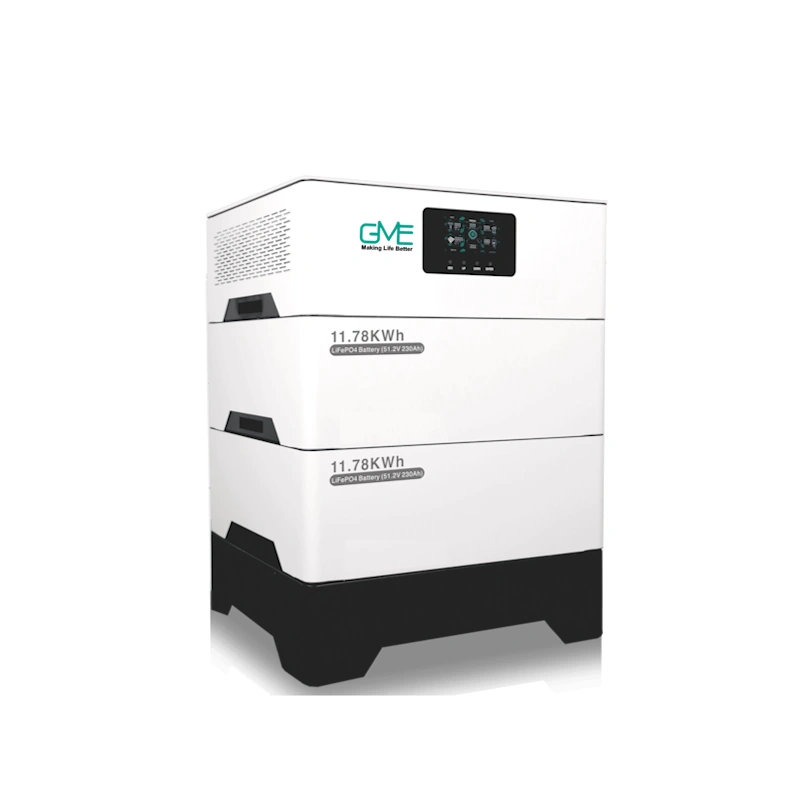

The GME YQD-5124002-LFOESS is a next-generation solar energy storage system, designed to deliver high-performance energy management, scalable power solutions, and long-term reliability for industrial and commercial applications. Featuring advanced LFP battery technology, it ensures consistent power output, optimized efficiency, and superior sustainability.
11KW Hybrid Inverter
Input
- AC Voltage Range: 90-280V AC / 170-280V AC
- PV Voltage Range: PV (DC) 360-500Vdc, MPPT 90- 450Vdc
- Frequency range: 50Hz/60Hz (adaptive)
Output
- Output Power Rating: 11000W
- Output Voltage: 220/230/240V AC ±5%
- Output Frequency: 50Hz/60Hz ±0.1%
- Waveform: Pure sine wave
- Peak Power: 22000W
Battery
- Rated Voltage: 48Vdc
- Floating Charge Voltage: 54Vdc
Solar Charge BAC Charge
- PV Charge Mode: MPPT
- Maximum Input Power: 5500W + 5500W
- MPPT Voltage Range: 90-450Vdc
- Best VMP Operating Range: 300-400Vdc
- Maximum PV Input Voltage: 500Vdc
- Maximum PV Charging Current: 150A
- Maximum AC Charge Current: 150A
Display
- LCD Interface: LCD Display
Interfaces
- RS232/RS485/CAN
Environment
- Operating Temperature Range: -10℃ ~ 50℃
- Operating Humidity: 20% ~ 90%
- Storage Temperature: -15℃ ~ 60℃
- Altitude: Less 1000m, maximum 4000m
- Noise: <55db
Lithium Battery Performance
Performance
- Nominal Voltage: 51.2V
- Nominal Capacity: 230Ah*2
- Battery Energy: 23.56KWh
- Maximum Continuous Discharge Current: 230A
- Standard Charging Current: <150A
- Standard Discharge Current: 215A
Communication
- Communication: RS232, RS485, CAN
General Specification
- Cell Type: LiFePO4
- Installation: Floor Stand
- Operating Suitable Temperature: -20℃ ~ 65℃
- Cooling Method: Natural cooling
- Cycle Life: >6000 Cycles
Standard Compliance
- Certificates: UN38.3, MSDS, IEC
