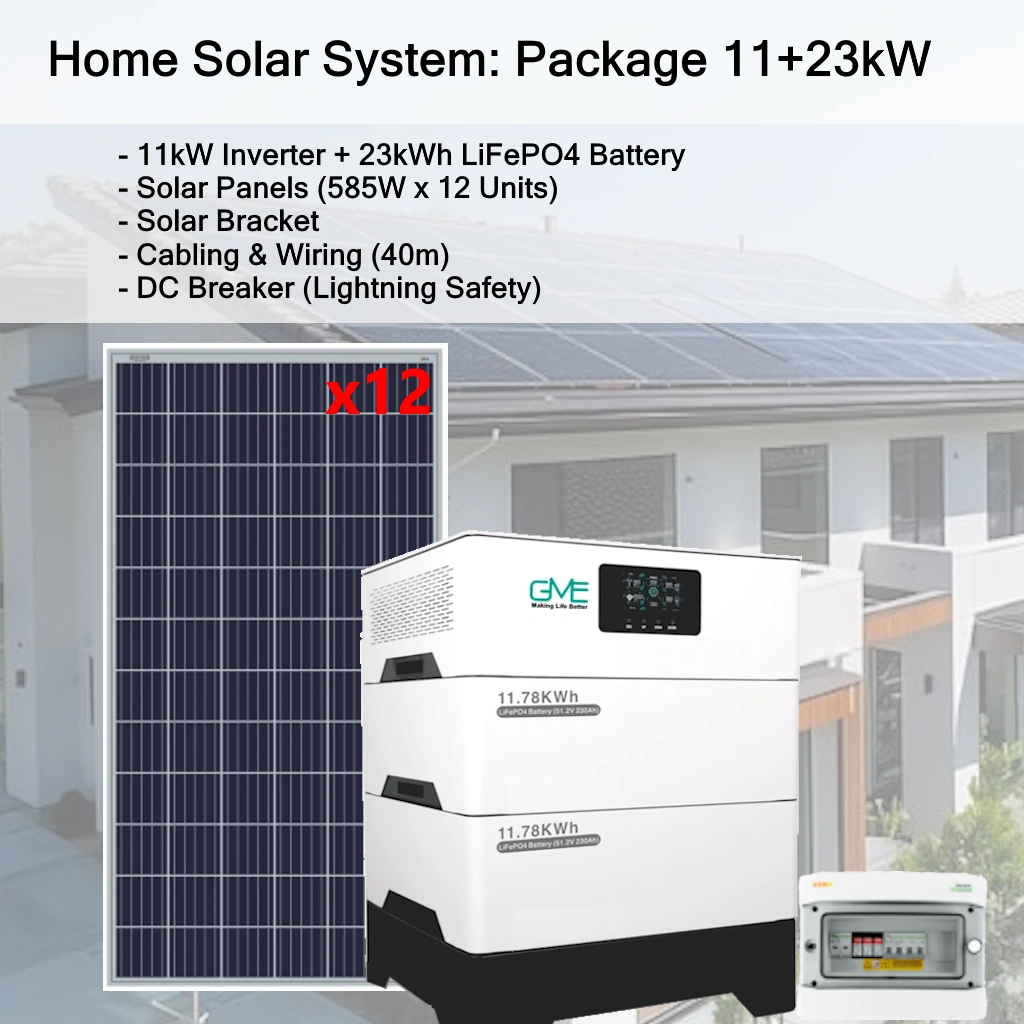

Home Solar Power 23KW – Power your home sustainably with this high-performance solar solution, designed for reliable daily use and backup readiness.
Key Features of Home Solar Power 23KW:
- 🔋 23kWh LiFePO₄ Battery – Long-lasting, safe energy storage with high cycle life and stable performance.
- ⚡ 11kW Inverter – Seamless power conversion for household appliances, ensuring smooth operation and grid independence.
- 🌞 12 × 585W Solar Panels – High-efficiency monocrystalline panels for optimal energy harvest, even in low-light conditions.
- 🏠 Ideal For – Homes, small businesses, and off-grid setups needing clean, consistent power for fans, fridges, lighting, and electronics.
Benefits:
- ✅ Reduce electricity bills and carbon footprint
- ✅ Backup power during outages
- ✅ Expandable and future-ready design
Parameters:
11KW Hybrid Inverter
Input
- AC Voltage Range: 90-280V AC (Normal) / 170-280V AC / (UPS Mode)
- PV Voltage Range: PV(DC) 360-500Vdc, MPPT 90~450Vdc
- Frequency range: 50Hz/60Hz (adaptive)
Output
- Output Power Rating: 11000W
- Output Voltage: 220/230/240V AC ±5%
- Output Frequency: 50Hz/60Hz ±0.1%
- Waveform: Pure sine wave
- Peak Power: 22000W
Battery
- Rated Voltage: 48Vdc
- Floating Charge Voltage: 54Vdc
Lithium Battery Performance
Performance
- Nominal Voltage: 51.2V
- Nominal Capacity: 230Ah
- Battery Energy: 11.78Kwh
- Maximum Continuous Discharge Current: 230A
- Standard Charging Current: <150A
- Standard Discharge Current: 150A
Communication
- Communication: RS232, RS485, CAN
General Specification
- Cell Type: LiFePO4
- Installation: WheelStyle/Floor Stand
- Operating Suitable Temperature: -20℃ ~ 65℃
- Cooling Method: Natural cooling
- Cycle Life: >6000 Cycles
