Description

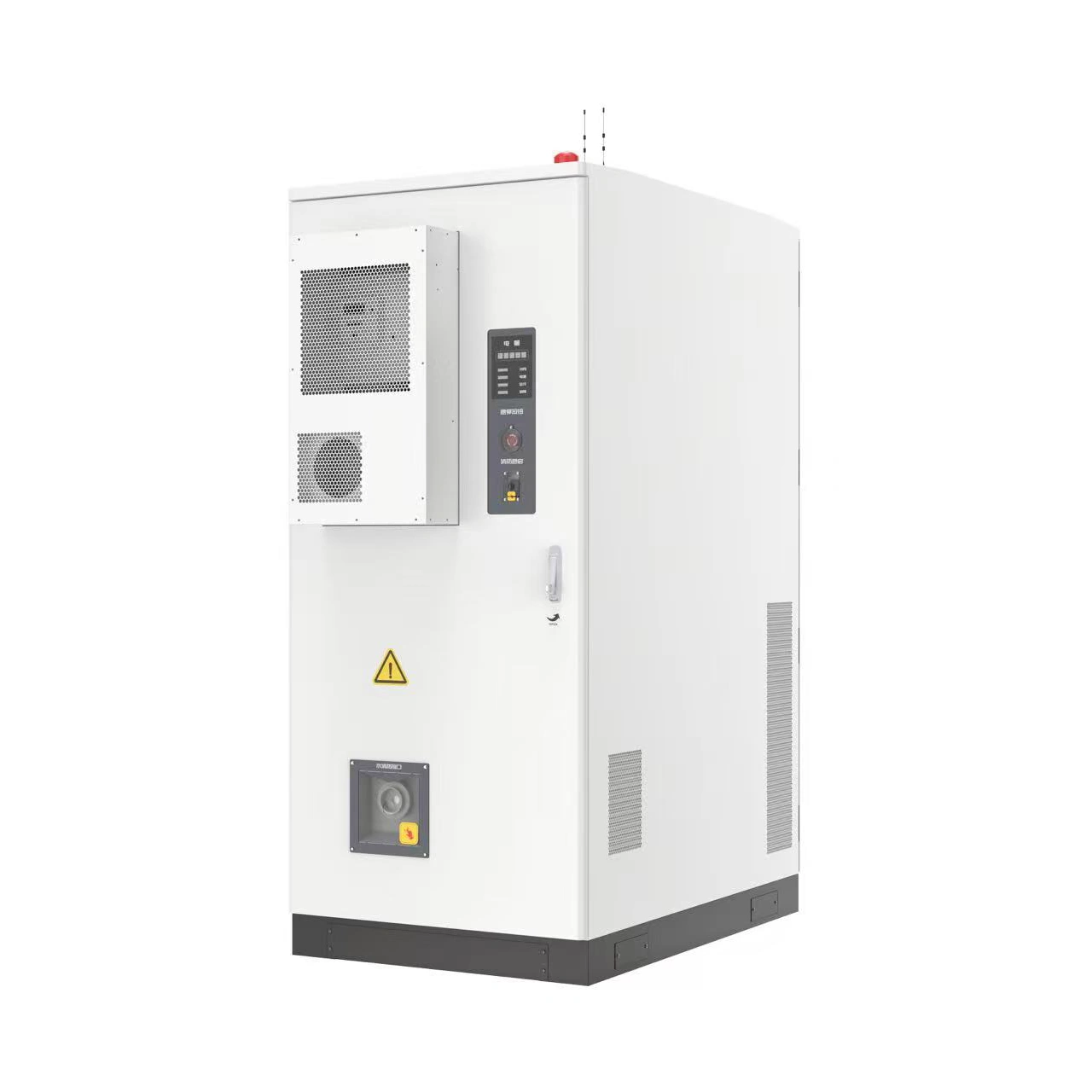

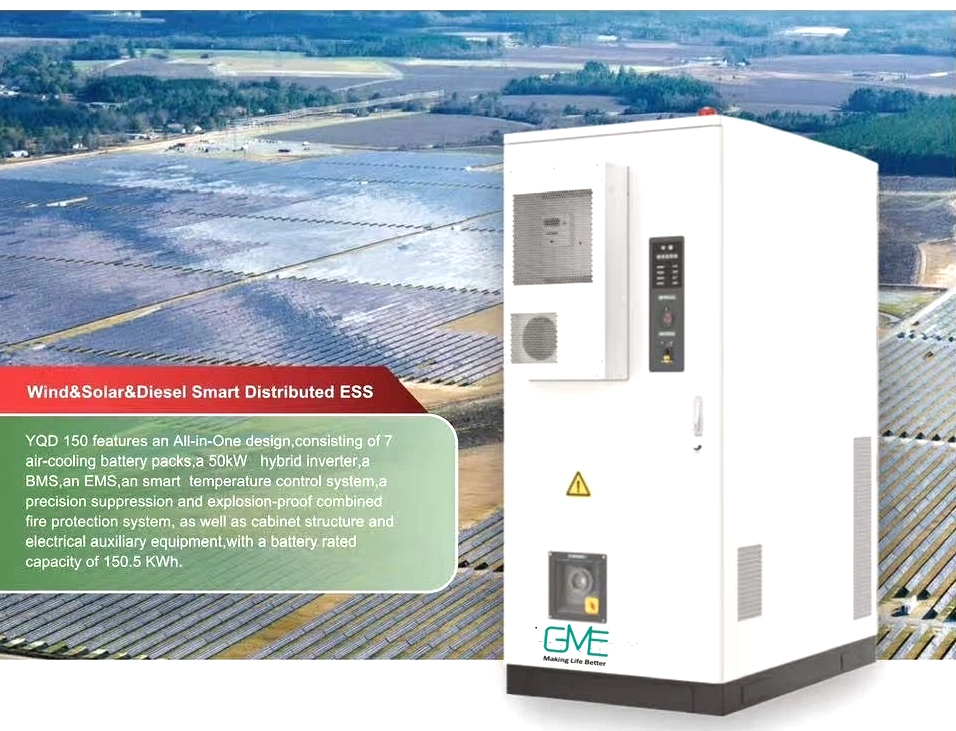

The GME YQD-DS5T0150-PVW50A is a high-performance energy storage system, built to enhance power stability, reduce electricity costs, and support seamless energy management. Featuring cutting-edge LFP battery technology, this system ensures long-lasting reliability, optimized efficiency, and intelligent operation for industrial and commercial applications.

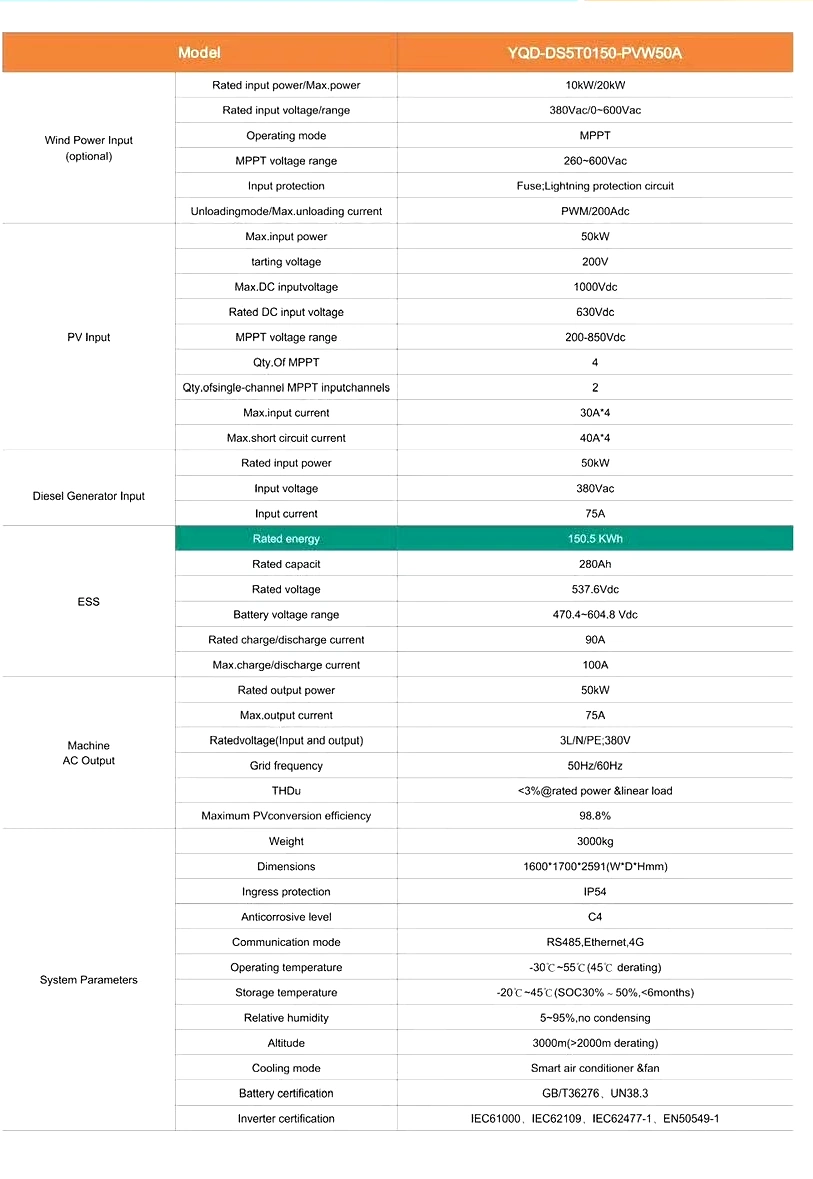

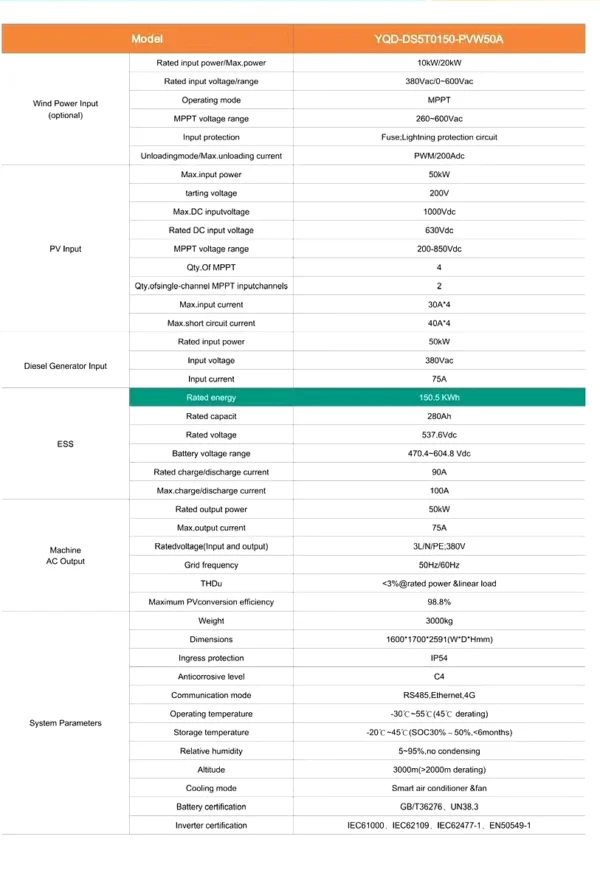

Technical Specifications and Parameters:
- Rated Input Power / Max. Power: 10KW / 20KW
- Rated Input Voltage / Range: 380Vac / 0-600Vac
- Battery Energy: 100Kwh
Wind Power (Optional):
- Rated Input Power/Max Power: 10kW/20kW
- Rated Input Voltage/Range: 380Vac/0-600Vac
- Input Mode: MPPT
- MPPT voltage range:260~600Vac
- Input Protection: Fuse; Lightning Protection Circuit
- Unloading Mode / Max. Unloading Current: PWM / 200Adc
PV Input:
- MPPT Voltage Range: 200-850Vdc
- Qty. of MPPT: (Qty. of Single-Channel MPPT Input Channels)
- Max. Input Current: 30A*4
- Max. Short Circuit Current: 40A*4
- Rated Input Power: 50kW (Note: This may be redundant as it’s mentioned again, likely a typo or repetition in the original image)
Diesel Generator:
- Rated Input Power: 50kW
- Input Voltage: 380Vac
- Input Current: 75A
ESS (Energy Storage System):
- Rated Energy: 150.5kWh
- Rated Capacity: 280Ah
- Rated Voltage: 537.6Vdc
- Max. Output Current: 75A
- Rated Charge/Discharge Current: 90A
- Max. Charge/Discharge Current: 100A
Machine:
- Rated Output Power: 50kW
- Max. Output Current: 75A
- Rated Voltage (Input and Output): 3L/N/PE; 380V
- AC Output: Grid Frequency 50Hz/60Hz
- THD (Total Harmonic Distortion): <3% @ rated power & linear load
- Maximum PV Conversion Efficiency: 98.8%
Basic Information:
- Ingress Protection: IP54
- Anticorrosive Level: C4
- Communication Mode: RS485, Ethernet, 4G
Technical Parameters:
- Operating Temperature: -30°C to +55°C (derating at 45°C)
- Storage Temperature: -20°C to +45°C (SOC 30% ~ 50%, < 6 months)
- Relative Humidity: 5% to 95%, no condensing
- Altitude: 3000 m (derating above 2000 m)
- Battery Certification: GB/T36278, UN38.3
- Inverter Certification: IEC61000, IEC62109 (Note: There’s a discrepancy between the image text “IEC62196” and the extracted text “IEC62109”.
